A longtime leader in the telecommunications and small civil construction industries, Louisa Construction Company now includes vertical drilling capabilities in its robust service menu.



SERVICES WE PROVIDE

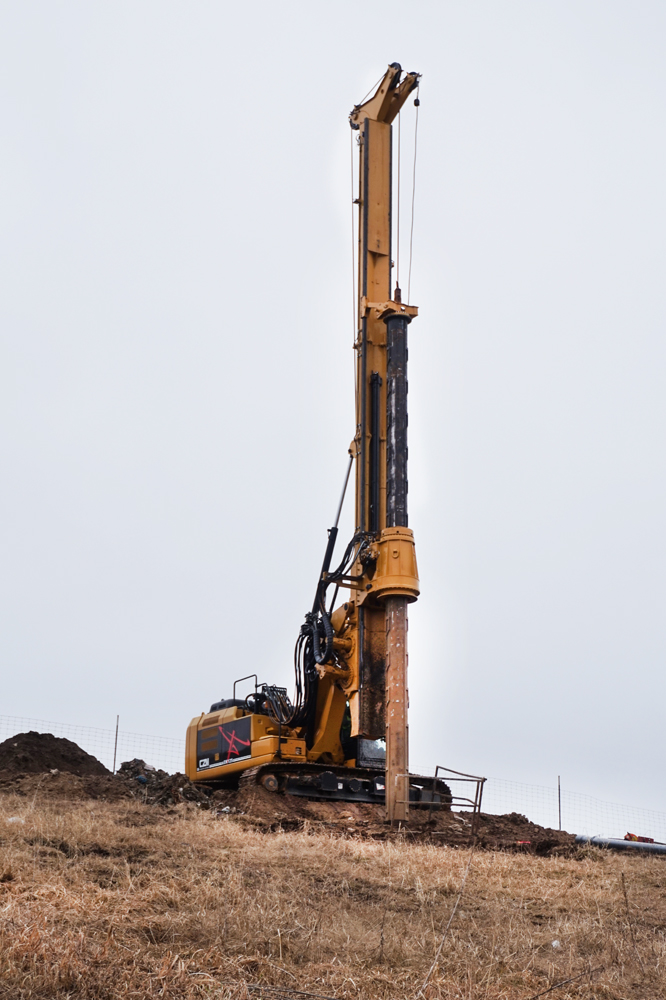

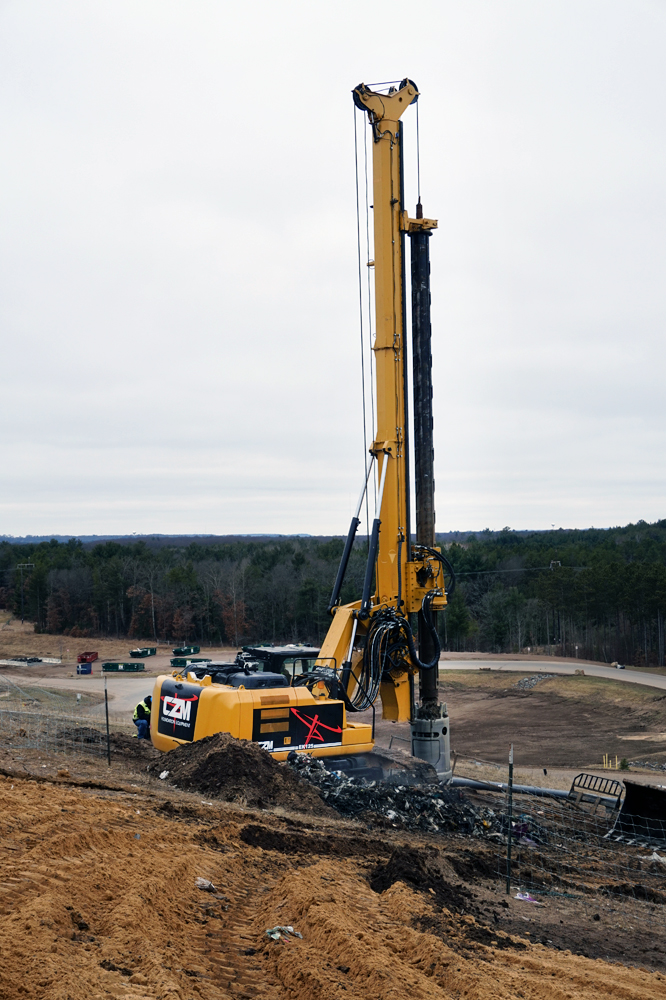

• Louisa Construction Company operates a fleet of CZM Foundation tracked vertical drilling rigs
• Low mast assembly available for tight overhead clearance scenarios (SR – 45)
• Cased-Shaft
• Capable of drilling 18” to 14’ diameter holes up to 120’ deep
• Provide casing for cohesion-less holes
• Offer associated turnkey and job layout services
• All in-house fleet operated by experienced drilling crews
• Experience with wet hole and rock conditions
• Drilled foundations and caissons including all concrete work and the tying and placement of rebar
• Site preparation and restoration services
• Proper handling and disposal of excess drilling materials and spoils
• Fully licensed and bonded

Technical Specifications

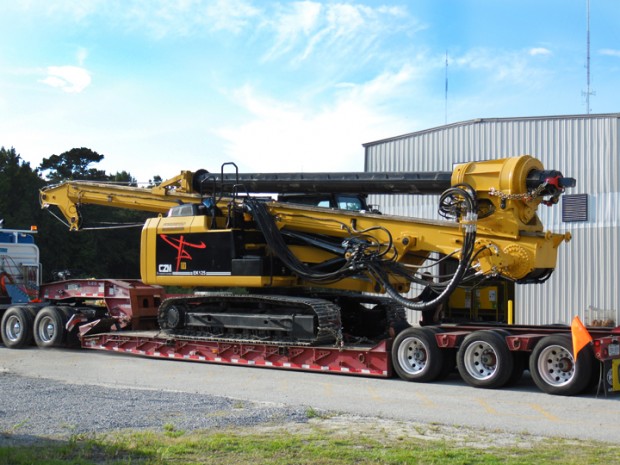

• Standard Chassis: CAT 323F L Tier IV
• Application: Kelly Bar
• Installed Power: 161 hp
• Maximum Nominal Torque: 88,000 lbf.ft
• Main Winch Nominal Pull Line: 41,000 lbf
• Crowd Force: 43,000 lbf
• Standard Depth: 120 ft
• Maximum Diameter: 96 in
• Transport Weight (120′ Kelly Bar): 82,500 ib
• Transport Weight (155′ Kelly Bar): 85,000 lb
